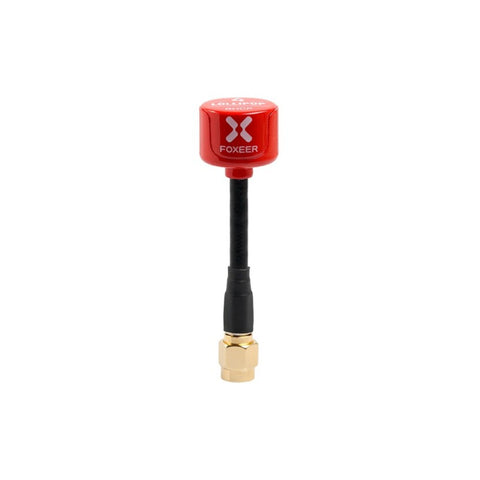

Foxeer Lollipop V4 FPV Antenna 5.8G High Gain (Set Of 2)

(Ex GST: $21.36)

(Ex GST: $27.26)

(Ex GST: $22.72)

Color:

Red (RHCP)

Black (RHCP)

Connector:

SMA

U.FL

Quantity

Featured Products

DOGCOM 5200mAh 6S 120C 22.2V LiPo Battery QS8 [DG]

ISDT K2 Air Dual Channel Smart Charger 2-6S AC DC 200w 500w 20A

Matek M10Q-5883 GPS COMPASS Module

TBS Crossfire Diversity Nano RX

RadioMaster Bandit ExpressLRS 915MHz ELRS RF 1W Module TX

SUNLU ASA 3D Printer Filament 1.75mm 1KG

Foxeer 5.8G Lollipop 4 High Gain FPV Antenna is here!

Center Frequency	5.7GHz
Gain	2.6dBi
Axial Ratio	Close to 1
Band Width	5.5G~6GHz
Radiation Efficiency	98%
SWR	1.07 at Center Frequency
Polarization	RHCP/LHCP
Case Material	PC+ABS
Weight	SMA/RPSMA: 7.8g
	Straight MMCX: 4.4g
	Angle MMCX: 4.5g
	SMA-10CM: 9.7g
	Angle SMA-15CM: 13.9g
	UFL : 2.8g
	UFL Tube Short: 2.9g
	UFL Tube Long: 3.8g
	Angle MMCX Tube Short: 4.8g
	Angle MMCX Tube Long: 6.8g
Connector & Length	SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm
	UFL/ UFL Tube Short/ Angle MMCX Tube Short: Φ11*85mm
	SMA-10CM: Φ11*100mm
	SMA 15CM Angle/ UFL Tube Long/ Angle MMCX Tube Long: Φ11*150mm
Quantity	2pcs Antennas
