Matek F405-TE Flight Controller

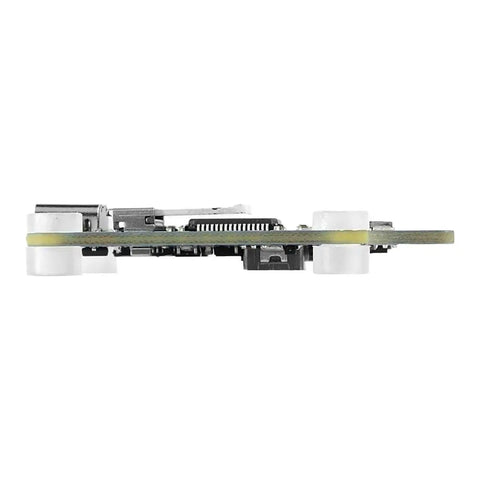

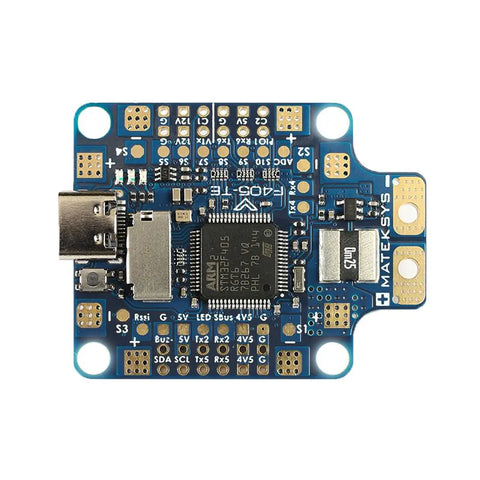

The Matek F405-TE Flight Controller features a 30.5 x 30.5mm mounting pattern and weighs 10g. It features a Barometer, Micro SD Slot, 6x UARTS, 11x PWM outputs, 9-36V DC IN (3-8S LiPo), 220A Current Sensor, BEC 12V 2A, 5V 1.5A and Dual analog camera signal inputs.
Features
- OSD: AT7456E(Analog), DJI OSD(Digital)
- Dual analog camera signal inputs
- 11x PWM outputs(S1-10, LED)
- 6x UARTS, 1x softserial_TX
- Beta Flight MATEKF405TE
- 9-36V DC IN (3-8S LiPo)
- ArduPilot MatekF405-TE
- INAV MATEKF405TE SD
- MCU: STM32F405RGT6
- Barometer: SPL06-001
- BEC 12V 2A, 5V 1.5A
- 220A Current Sensor
- IMU: ICM42688-P
- Micro SD Slot
- 2x PINIO
- 1x 12C
- 4x ADC
Specifications
- PWM Outputs: 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
- Pads: 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- UARTS: 6x UARTs, 1x Softserial_Tx option(INAV/BF)
- ADC: 4x ADC (VBAT, Current, RSSI, Airspeed)
- Built-in inverter: UART2-RX for SBUS input
- ESC: 4x individual ESC power/signal pads
- Camera: Switchable Dual Camera Input
- MCU: 168MHz STM32F405RGT6
- Blackbox: MicroSD slot (SPI)
- Dimensions: 36 x 46 mm
- IMU: ICM42688-P (SPI)
- Baro: SPL06-001 (I2C)
- PINIO: 1x spare PINIO
- OSD: AT7456E (SPI)
- Weight: 10g
PDB
- Battery Voltage divider: 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)
- Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
- PDB: 4x 35A (Max.4x 50A)
- Input: 9~36V (3~8S LiPo)
- LDO 3.3V: 200mA
- BEC: 5V 1.5A
- BEC: 12V 2A
Firmware
- BetaFlight: MATEKF405TE
- INAV: MATEKF405TE_SD
- ArduPilot: MatekF405-TE
IMPORTANT NOTES
- INAV, and DSHOT can not work on S3, S5, and S7 because of DMA clash, pls use ONESHOT or MULTISHOT and calibrate ESC PWM range.
Links
Includes
- 1x MATEKSYS F405-TE Flight Controller - 30x30
- 1x Rubycon ZLH 35V/470uF (Low ESR)
- 6x silicon grommets M4 to M3
- 1x F405-TE
