Matek F405 VTOL Flight Controller 25x25mm 35x35mm

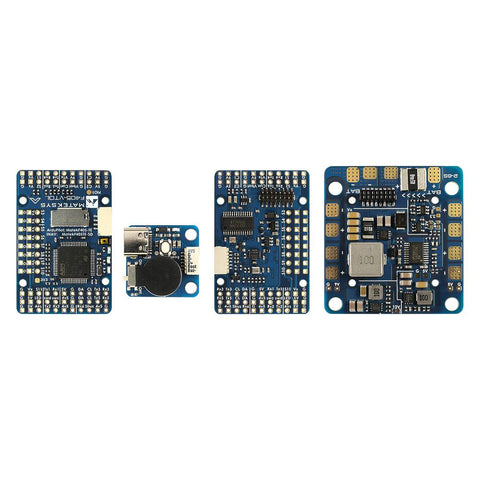

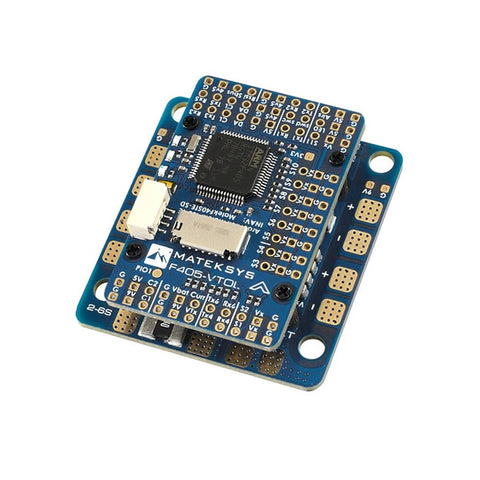

The MATEKSYS F405-VTOL Flight Controller features 25x25 and 35x35 mounting patterns and weighs 25g. It features a Barometer, BlackBox MicroSD, 6x UARTS, 4x ADC, 12x PWM outputs, 2x PINIO (Camera switch, P101 pad), PDB for 5x individual ESC/Motors, 6.8-30V DC IN (2-6S LiPo), 220A High-precision current sensor, BEC 5V 2A for FC and peripherals, BEC 9V 2A (12V options for Camera/VTX), BEC VX 8A cont. 10A Peak for servos.
Features
- BEC VX 8A cont. 10A Peak for servos (5V,6V,7.2V option)
- BEC 9V 2A, 12V option for Camera/VTX
- 2x PINIO (Camera switch, P101 pad)
- 25x25 and 35x35 mounting patterns
- 220A High-precision current sense
- BEC 5V 2A for FC and peripherals
- PDB for 5x individual ESC/Motors
- 6.8-30V DC IN (2-6S LiPo)
- MCU STM32F405RGT6
- Barometer SPL06-001
- BlackBox MicroSD
- 12x PWM outputs
- IMU ICM42688-P
- OSD AT7456E
- 6x UARTS
- 4x ADC
Specifications
- Mounting: 25 x 25mm-Φ2mm, 35 x 35mm- Φ4mm
- Built in inverter on UART2-RX for SBUS input
- MCU: STM32F405RGT6, 168MHz , 1MB Flash
- USB/Beep Extender with Type-C(USB2.0)
- 6x UARTs, 1x Softserial_Tx option(INAV)
- 4x ADC (VBAT, Current, RSSI, Airspeed)
- Weight: 25g w/ USB/buzzer adapter
- Switchable Dual Camera Input
- 1x spare PINIOOSD: AT7456E

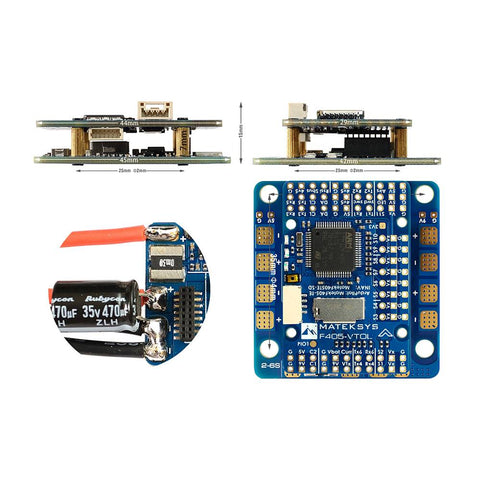

- Dimensions: 45 x 42 x 15mm
- Blackbox: MicroSD card slot
- 12x PWM outputs
- IMU: ICM42688-P
- Baro: SPL06-001
- 1x I2C
FC Firmware
- INAV: MATEKF405TE_SD (INAV 5.0 or newer)
- ArduPilot: MatekF405-TE
PDB
- Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
- Support continuous load of up to 30A & peak of 50A on each ESC pad of Quadcopter
- Support continuous load of up to 100A on ESC pad near the current sensor resistor
- Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
- Sense resistor: 100A continuous, 220A peak
- 5x ESC power pads, total 100A continuous
- Input voltage range: 6.8~30V (2~6S LiPo)
BEC 5V output
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Continuous current: 2 Amps
BEC 9V /12V output
- For stable 9V/12V output, input voltage should > output voltage +1V
- Designed for Video Transmitter, Camera, Gimbal ect
- Continuous current: 2 Amps
- 12V option with Jumper pad
BEC Vx output
- for stable Vx output, input voltage should > Vx voltage +1V
- Voltage adjustable, 5V Default, 6V or 7.2V via jumper
- Continuous current: 8 Amps, 10A Peak
- Designed for Servos
BEC 3.3V output
- Designed for Baro / Compass module and external 3.3V peripherals
- Continuous current: 200mA
- Linear Regulator
IMPORTANT NOTES
- Board is shipped unsoldered.
Links
Includes
- 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
- 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
- 1x MATEKSYS F405-VTOL Flight Controller
- 1x Rubycon ZLH 35V 470uF capacitor
