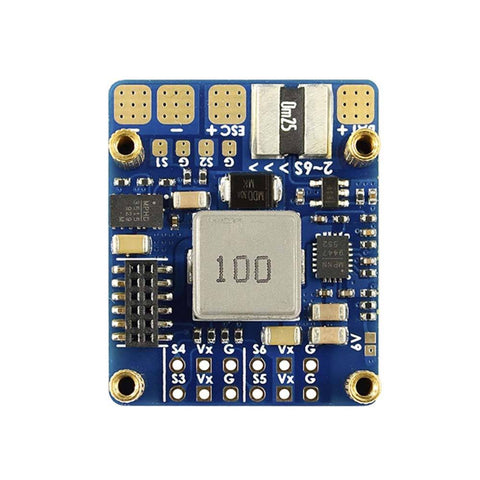

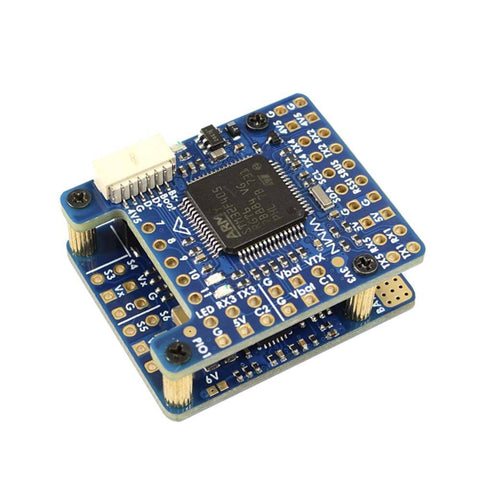

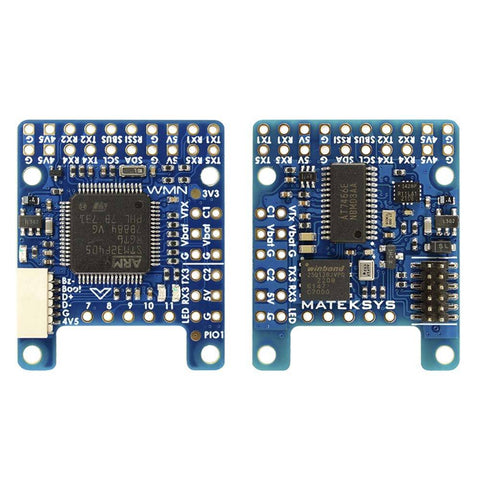

Matek F405-WMN Flight Controller Airplane Wing

  • $103.99
(Ex GST: $94.54)



Matek F405-WMN Flight Controller Airplane Wing

Matek's F405-WMN (Wing Mini) board is a great flight controller for those looking to save space and weight on their builds.  It puts pretty much all features from a full-size board on something that measures just 31x26x16mm.



Features

  • Full-size board
  • Lightweight



Specifications

  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: 16M Flash
  • 5x UARTs,  1x Softserial_Tx option(INAV)
  • 12x PWM outputs
  • 1x I2C
  • 3x ADC (VBAT, Current, RSSI)
  • 1x spare PINIO
  • USB/Beep Extender with Type-C(USB2.0)
  • Built in inverter on UART2-RX for SBUS input
  • Switchable Dual Camera Inputs



Power

  • 6~30V DC IN (2~6S LiPo)
  • 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
  • PDB/Current sense resistor: 90A continuous, 132A burst.
  • BEC 5V 1.5A for FC & Peripherals
  • BEC Vx 5A for servos, 5V/ 6V option
  • Vbat for VTX and camera
  • LDO 3.3V 200mA
  • Battery Voltage Sensor: 1k:20k



FC Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE (INAV 5.0 or newer)



Physical

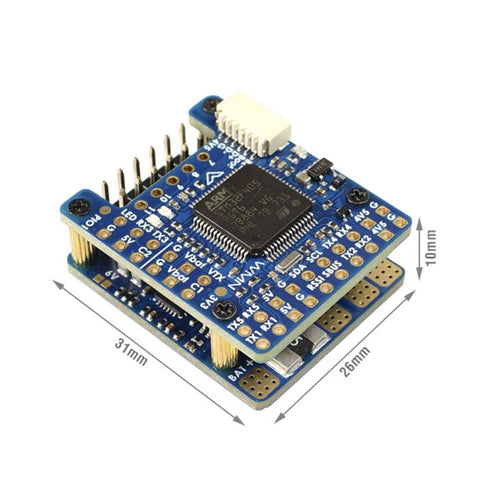

  • Dimensions: 31 x 26 x 16.5 mm
  • Mounting: 22 x 22mm, Φ2mm
  • Weight: 10g



Includes

  • 1x MATEKSYS F405-WMN
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • Dupont 2.54 pins (Board is shipped unsoldered)
