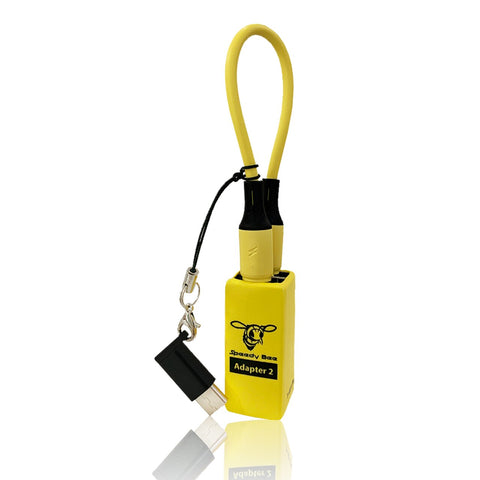

SPEEDYBEE Adapter 2 with Type-C Convertor

(Ex GST: $41.77)

Quantity

Featured Products

TBS Crossfire Diversity Nano RX

Matek M10Q-5883 GPS COMPASS Module

RadioMaster Bandit BR3 ExpressLRS 915MHz ELRS TCXO Receiver

DOGCOM 5200mAh 6S 120C 22.2V LiPo Battery QS8 [DG]

Infinity 1400mAh 6S 150C 22.2V LiPo Battery XT60 [DG]

RadioMaster Bandit ExpressLRS 915MHz ELRS RF 1W Module TX

The WiFi chip in the Adapter 2 which greatly improves the transmission speed and makes it possible to upgrade your flight
controllers The whole upgrading process costs only 2-3 minutes.
The firmware flashing currently only supports Betaflight via WiFi connection to the Adapter 2

Now the SpeedyBee Adapter 2 is a full-featured mobile
BF/iNav configurator. Just go to the field to fly without carrying a heavy laptop

Soldering work should be done on the user end on the previous generation. But the Adapter 2 now has built-in XT60 and PH2.0 connectors which both support 1-6S LiPo batteries input*. As the Adapter 2can power your flight controller, you don't need another battery to power your quad.
*For 1S batteries, 3.8V or above is requried. Because some(very few) quadcopters may consume a lot of current, and the output voltage of the adapter 2 will be greatly reduced

Power Input Voltage Range	1-6S(3.8V+ for 1S)
Power Input Interface	XT60-Male, PH2.0 male
Case Meterial	Heat-shrink Tubing
Liquid Silicone Cable Length(Pure Wire)	10cm
Net Weight	21.8g
WiFi Transmission Distance	3 meters
Standby Working Current Under 5V	120mA
Maximum Output Current	200mA @5V
Dimension(Main Body)	1818.542mm
