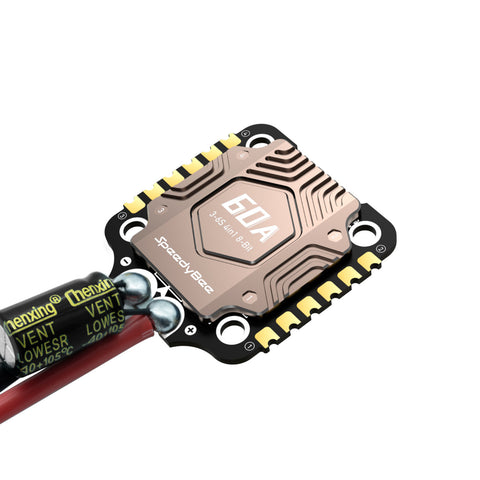

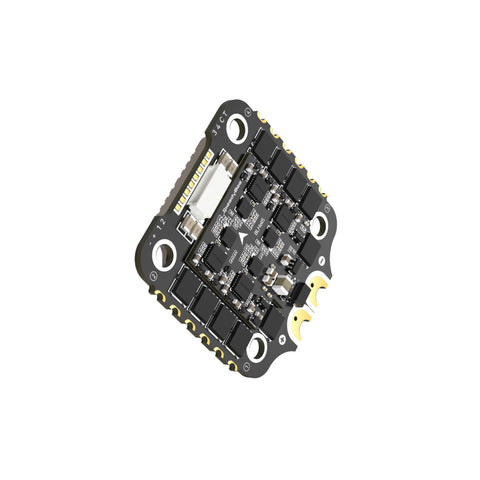

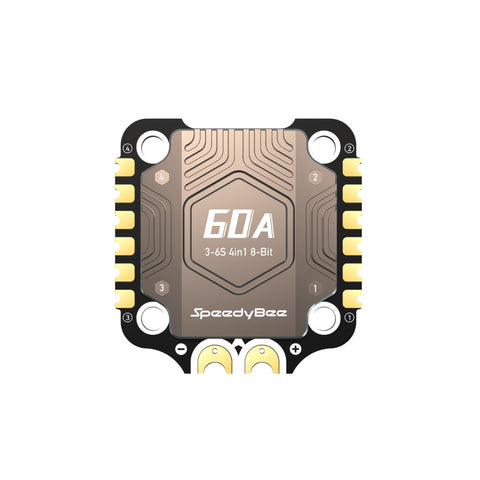

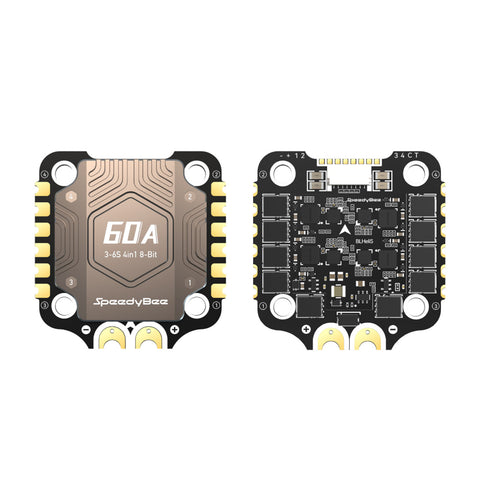

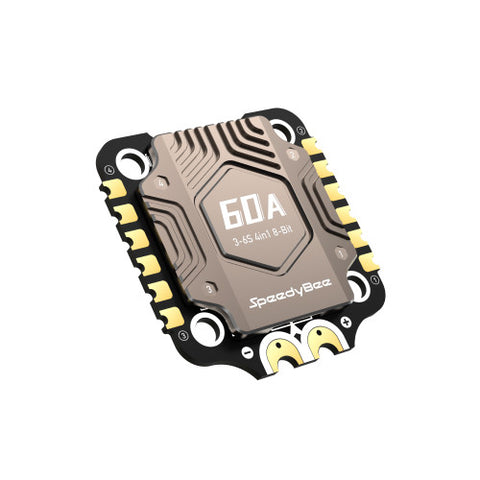

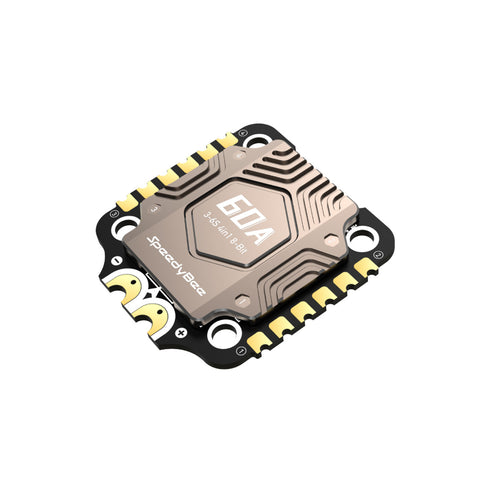

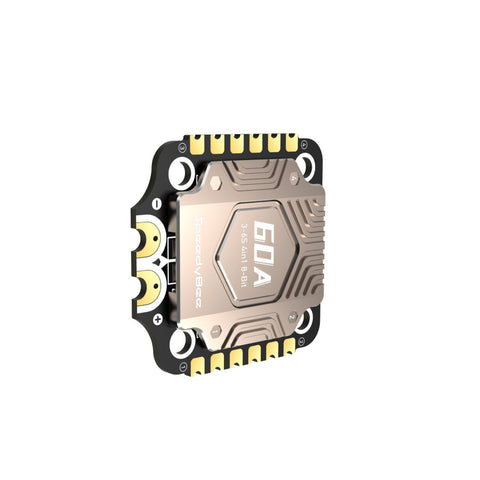

SPEEDYBEE BLS 60A 4IN1 ESC 30.5x30.5mm
Specifications
| Product Name | SpeedyBee BLS 60A 30x30 4-in-1 ESC |
| Firmware | BLHeli_S J-H-50 |
| PC Configurator Download Link | https://esc-configurator.com/ |
| Continuous Current | 60A * 4 |
| Burst Current | 80A(10 sec) |
| TVS Protective diode | Yes |
| External Capacitor | 1000uF Low ESR Capacitor(In the package) |
| ESC Protocol | DSHOT300/600 |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=400 Offset=0) |
| ESC Telemetry | Not supported |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 45.6(L) * 44(W) *8mm(H) |
| Weight | 23.5g |
