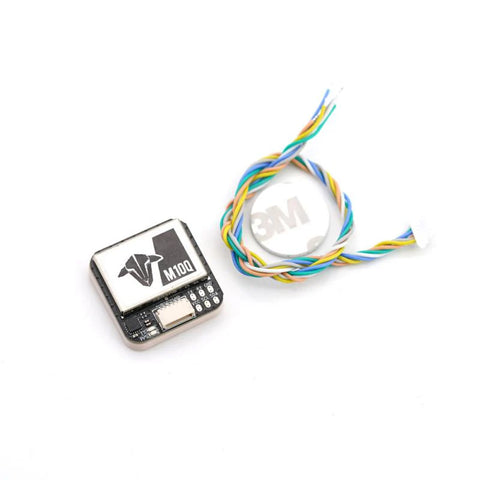

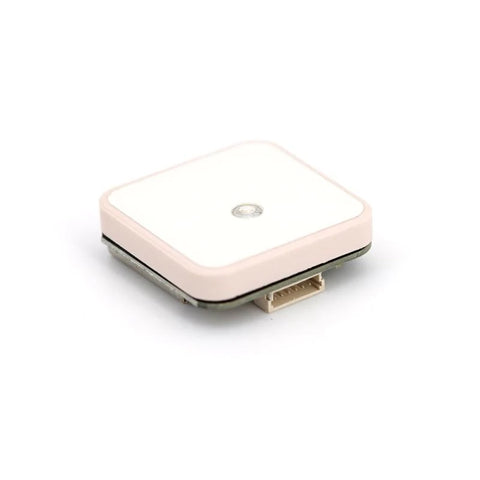

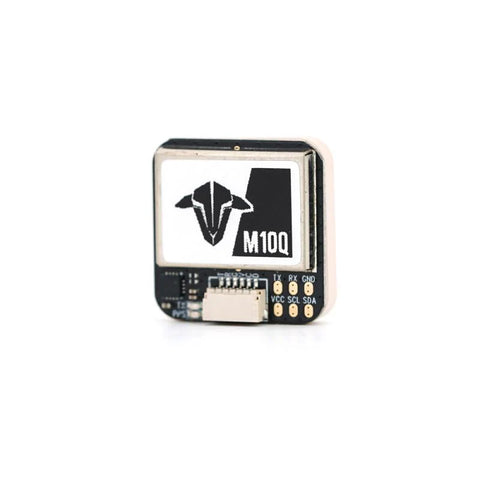

TBS M10Q GPS GLONASS

(Ex GST: $25.00)

Quantity

Featured Products

Infinity 1400mAh 6S 150C 22.2V LiPo Battery XT60 [DG]

RadioMaster Bandit Nano ExpressLRS 915MHz RF ELRS 1W Module TX

ISDT K2 Air Dual Channel Smart Charger 2-6S AC DC 200w 500w 20A

Matek M10Q-5883 GPS COMPASS Module

TBS Crossfire Diversity Nano RX

RadioMaster Bandit ExpressLRS 915MHz ELRS RF 1W Module TX

Chipset - ublox UBX-M10050
Flash memory for saving configuration.
Frequency - L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
Baud Rate - 4800bps-921600bps, default 115200bps
Channel - N/a
Sensitivity - (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start - 148dBm)
Cold start - Average 26 seconds
Warm start - Average 24 seconds
Hot start - Average 1 second
Accuracy - (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
Maximum height - 50000m
Maximum speed - 500 m/s
Maximum acceleration - ≦ 4G
Refresh Rate - 0.25Hz-18Hz, default 1Hz
Size - 25 x 25 x 7.7mm
Weight - 13.5g
Input Voltage - 5V
Magnetometer: QMC5883
